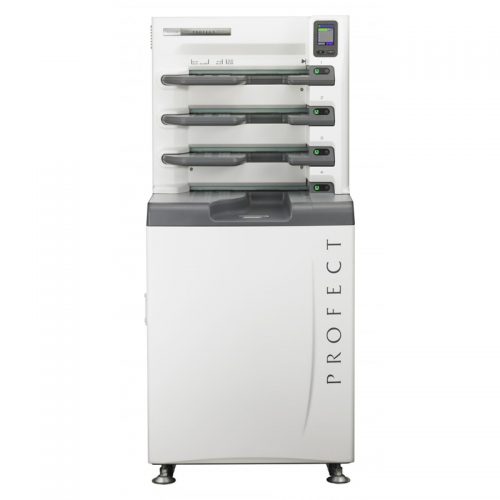

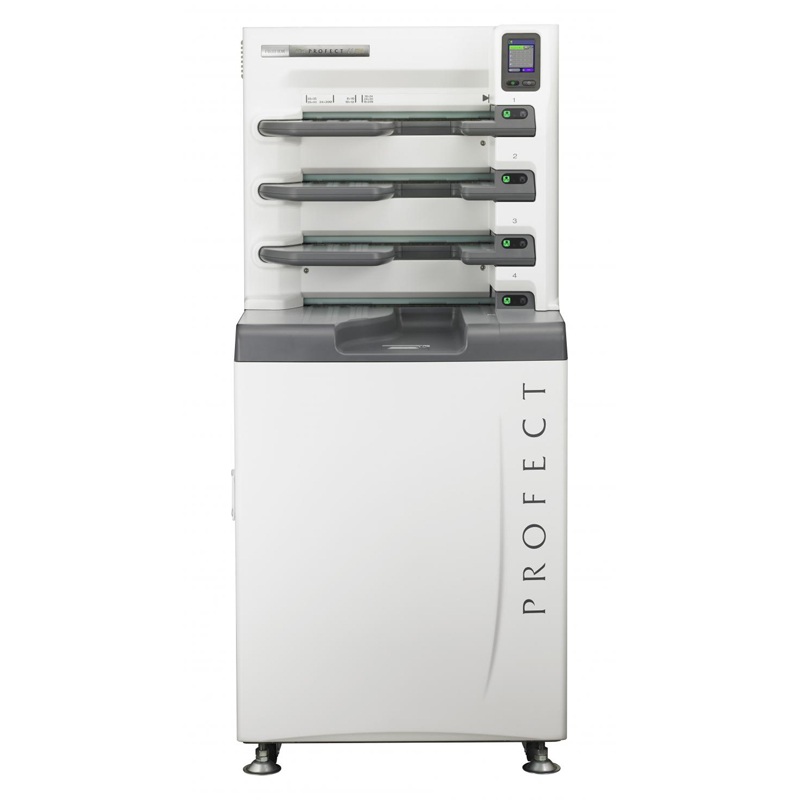

FCR PROFECT CS Plus
The highest grade model in the FCR Series. Superior image quality with 20 pixel / mm sampling pitch mammography and pediatric imaging with four-cassette stacker.
Features
- The fastest processing capacity in the world
(As the end of August 2012) - A multi-purpose FCR
- Enhanced image processing
- Superior image quality with 20 pixel/mm scanning pitch and Fujifilm’s revolutionary Dual-Side Reading Technology
- High-precision images for various needs
Specifications
Processing Capacity | 120 IPs/hr. |
Time Required for IP Feed/Load | 54 sec. |
Reading Specification | 5, 10, 20 pixels/mm |
Time to Start on Display | 37 sec. |
Time to Print on DRYPIX7000 | 115 sec. |
Number of Stacker | 4 |
Applicable Console | CR Console, CONSOLE ADVANCE, |
Main connectable Imagers | DRYPIX Plus/7000 |
Network | 10 Base T/100 Base TX |
Dimensions (W × D × H) | 655 × 740 × 1480mm (26″ × 29″ × 58″) |
Weight | 270kg (595lbs.) |
Power Supply Conditions | Single phase 50-60Hz |
Environmental Conditions | Operating Conditions: · Temperature: 15-30°C · Humidity: 40-80%RH (No dew condensation) Non-opereating Conditions: · Temperature: 0-45°C · Humidity: 10-90%RH (No dew condensation) |
Supplies | Imaging Plate: · ST-VI (Standard): 14″ × 17″, 14″ × 14″, · HR-V (High Resolution): · ST-BD (Standard Dual-Side Reading): · HR-BD (High Resolution Dual-Side Reading for Mammography): IP Cassette: · Type CC: 14″ × 17″, 14″× 14″, 10″ × 12″, · Type CH: 24 × 30cm, 18 × 24cm · Type DS: 24 × 30cm, 18 × 24cm · Type DM: 24 × 30cm, 18 × 24cm · Type LC: 35.4 × 124.5cm, 35.4 × 101.7cm, |
