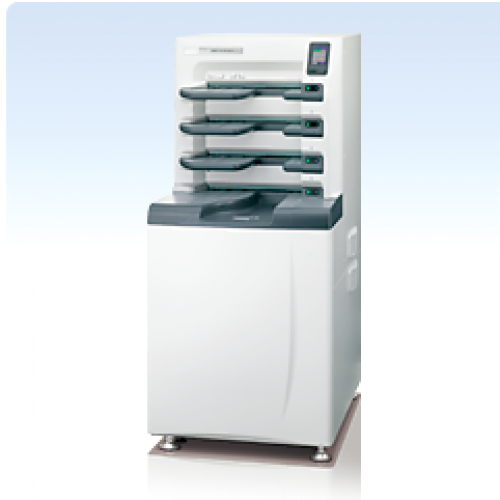

FCR XG5000 Plus

Processing Capacity
by ST-VI 14″ × 17″(35 × 43cm)

120 IPs/hr.

Time Required for IP Feed/Load
by ST-VI 14″ × 17″(35 × 43cm)

54 sec.

Reading Specification

5, 10 pixels/mm

Time to Start on Display
by ST-VI 14″ × 17″(35 × 43cm)

37 sec.

Time to Print on DRYPIX7000
by ST-VI 14″ × 17″(35 × 43cm)

115 sec.

Number of Stacker

4

Applicable Console

CR Console, CONSOLE ADVANCE

Main connectable Imagers

DRYPIX Plus/7000/Lite/PRIMA

Network

10 Base T/100 Base TX

Dimensions (W × D × H)

655 × 740 × 1480mm (26″ × 29″ × 58″)

Weight

270kg (595lbs.)

Power Supply Conditions

Single phase 50-60Hz
AC120-240V ±10% 7A (max)

Environmental Conditions

Operating Conditions:

·         Temperature: 15-30°C

·         Humidity: 40-80%RH (No dew condensation)

Non-opereating Conditions:

·         Temperature: 0-45°C

·         Humidity: 10-90%RH (No dew condensation)

Supplies

Imaging Plate:

·         ST-VI (Standard): 14″ × 17″, 14″ × 14″,
10″ × 12″, 8″ × 10″,24 × 30cm, 18 × 24cm, 15 × 30cm*

·         HR-V (High Resolution): 24 × 30cm, 18 × 24cm

IP Cassette:

·         Type CC: 14″ × 17″, 14″ × 14″,
10″ × 12″, 8″ × 10″,24 × 30cm, 18 × 24cm

·         Type LC: 35.4 × 124.5cm, 35.4 × 101.7cm,
35.4 × 83.0cm, 25.2 × 58.0cm, 24.0 × 57.0cm
