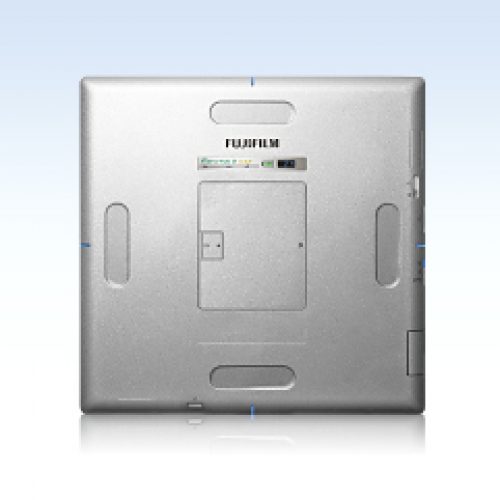

FDR D-EVO II C43

The endless pursuit of high image quality

The new D-EVO II CsI detector, the cutting edge of the FDR D-EVO series

Be Smart – Fujifilm DR detector technology has evolved to be smart. Smart use of dose. Smart image processing. Smart construction to withstand tough clinical environments. Smart design for easier technologist handling and patient positioning.

Overview

Smart Function – Easy pick up of the detector by its rounded form, LED indicators
Smart Protection – Increased durability, Waterproofing
Smart Mobility – Ultra light weight, Image storage by internal panel memory
Smart Quality – Higher DQE by ISS+CsI and noise reduction circuit

Specifications


Type	Cassette size detector with ISS (Irradiation Side Sampling system)
Scintillator	CsI (Cesium iodide)
Detector external size	460 × 460 × 15mm (Approx.) [18” × 18” × 0.6”]
Weight	Approx. 3.2kg [7.1lbs.] (including battery)
Pixel pitch	0.15mm
Pixels	2836 × 2832 pixels
Wireless standard	IEEE 802.11n (2.4GHz, W52 / W53 / W56 / W58)
Image preview	Less than 2sec
Cycle time	Less than 9sec (wired) Less than 10sec (SmartSwitch)
Battery recharging time	Approx. 3hours (with battery charger) Approx. 4hours (with Docking Stand)
Battery performance	Standby: Approx. 4hours Sleep mode: Approx. 7h 30min Extra sleep mode: Approx. 18h 30min
