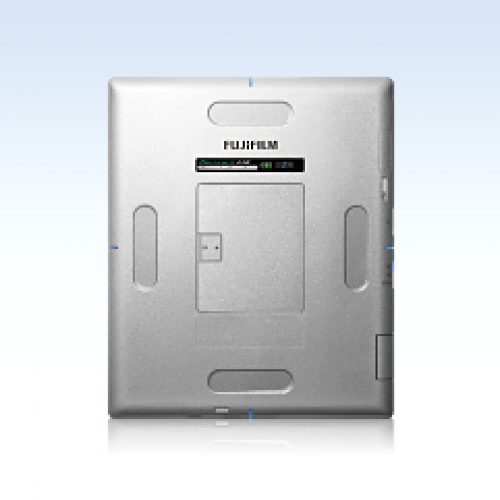

FDR D-EVO II G35

Home Radiology FUJIFILM Digital Radiography FDR D-EVO II G35

FDR D-EVO II G35

High definition, made smarter.

Improved image quality through a noise reduction circuit, and a variety of functions to support imaging. Introducing FDR D-EVO II, now even smarter.

Overview

Smart Function – Easy pick up of the detector by its rounded form, LED indicators
Smart Protection – Increased durability, Waterproofing
Smart Mobility – Ultra light weight, Image storage by internal panel memory
Smart Quality – High image quality by ISS, optimized blending of GOS phospor and noise reduction circuit

Specifications


Type	Cassette size detector with ISS (Irradiation Side Sampling system)
Scintillator	GOS (Gadolinium oxysulfide)
Detector external size	460 × 384 × 15mm (Approx.) [18” × 15” × 0.6”]
Weight	Approx. 2.6kg [5.7lbs.] (including battery)
Pixel pitch	0.15mm
Pixels	2836 × 2336pixels
Wireless standard	IEEE 802.11n (2.4GHz, W52 / W53 / W56 / W58)
Image preview	Less than 2sec
Cycle time	Less than 9sec (wired) Less than 10sec (SmartSwitch)
Battery recharging time	Approx. 3hours (with battery charger) Approx. 4hours (with Docking Stand)
Battery performance	Standby: Approx. 4hours Sleep mode: Approx. 7h 30min Extra sleep mode: Approx. 18h 30min
Optional parts
